In-depth intro to stainless steel wire mesh

Stainless steel wire mesh, a ubiquitous material in modern engineering and construction, boasts a rich history and a wide range of applications. Renowned for its durability, corrosion resistance, and strength, stainless steel wire mesh has become indispensable in industries spanning filtration, construction, architecture, and beyond. With its intricate weaving of stainless steel wires, this mesh offers unparalleled structural integrity and versatility, making it ideal for applications requiring precision filtration, protection, or structural support. In this comprehensive exploration, we embark on a journey to uncover the multifaceted uses, manufacturing processes, and essential considerations surrounding stainless steel wire mesh, shedding light on its enduring significance and indispensable role in various industrial and commercial settings.

Understanding the Composition of Stainless Steel Wire Mesh:

The composition of stainless steel wire mesh is primarily comprised of iron along with various alloying elements, most notably chromium (Cr) and nickel (Ni). These alloying elements impart unique properties to stainless steel wire mesh, making it resistant to corrosion, oxidation, and staining.

Chromium is the key element responsible for providing stainless steel with its corrosion resistance. When chromium is present in the alloy at levels of at least 10.5%, it forms a passive oxide layer on the surface of the stainless steel, which acts as a protective barrier against corrosion. The chromium oxide layer is self-healing and prevents further oxidation of the underlying material.

Nickel is another important alloying element in stainless steel wire mesh. It enhances the corrosion resistance of the alloy, improves its ductility, and increases its strength at both high and low temperatures. Nickel also contributes to the formation of the austenitic crystal structure in stainless steel, which further enhances its mechanical properties.

In addition to chromium and nickel, stainless steel wire mesh may contain other alloying elements such as molybdenum (Mo), titanium (Ti), and copper (Cu), among others. These elements are added to modify specific properties of the stainless steel, such as improving resistance to pitting corrosion, increasing strength, or enhancing weldability.

Manufacturing Process of Stainless Steel Wire Mesh:

Extrusion Process:

lIn the extrusion process, stainless steel billets or rods are heated to a specific temperature to make them more malleable.

lThe heated material is then forced through a shaped die or mold using a hydraulic or mechanical press.

lAs the material passes through the die, it is shaped into a continuous profile with the desired cross-sectional shape, which may be round, square, or rectangular.

lThe extruded stainless steel material is then cooled and cut to the desired length to form stainless steel wire.

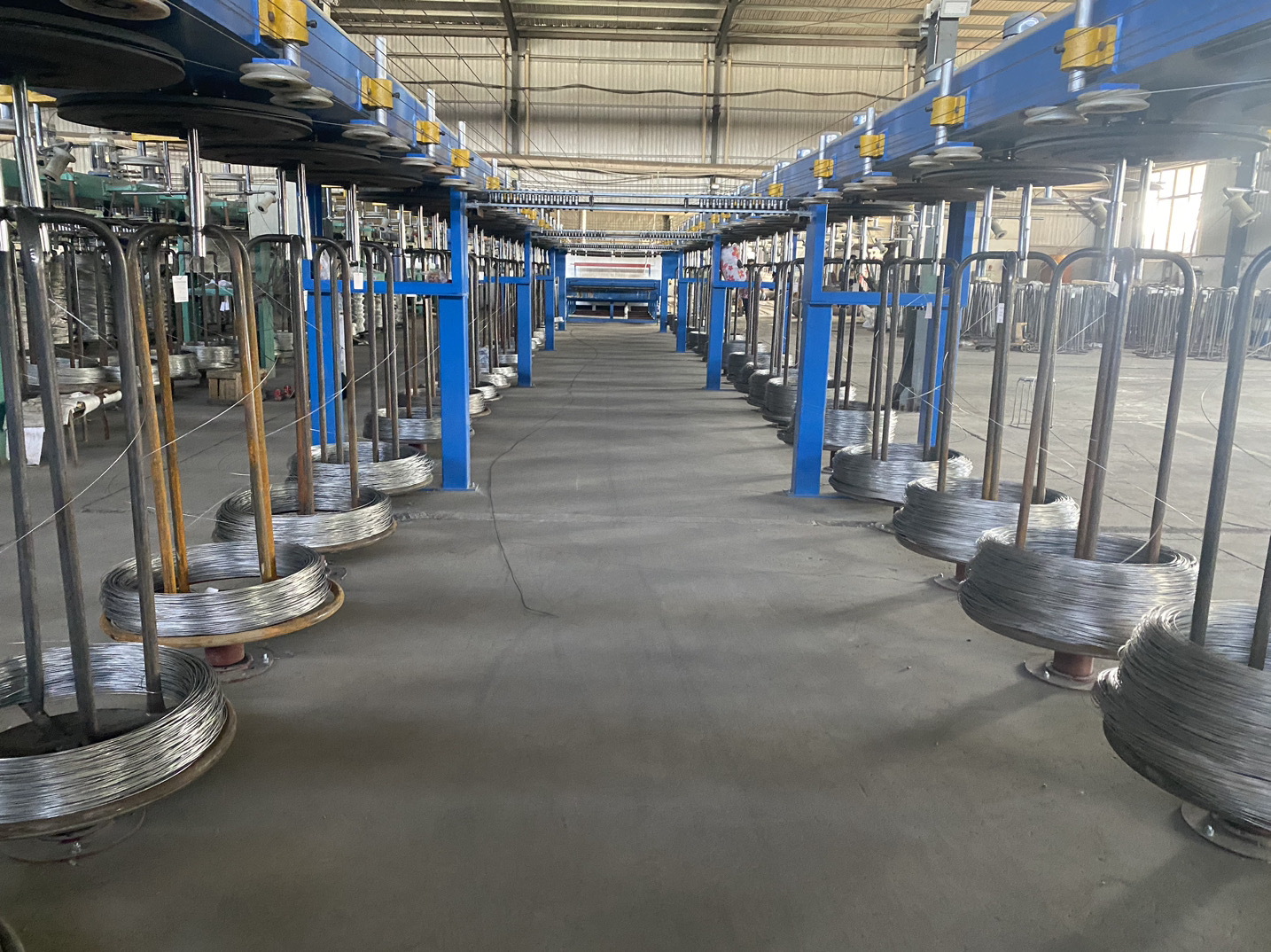

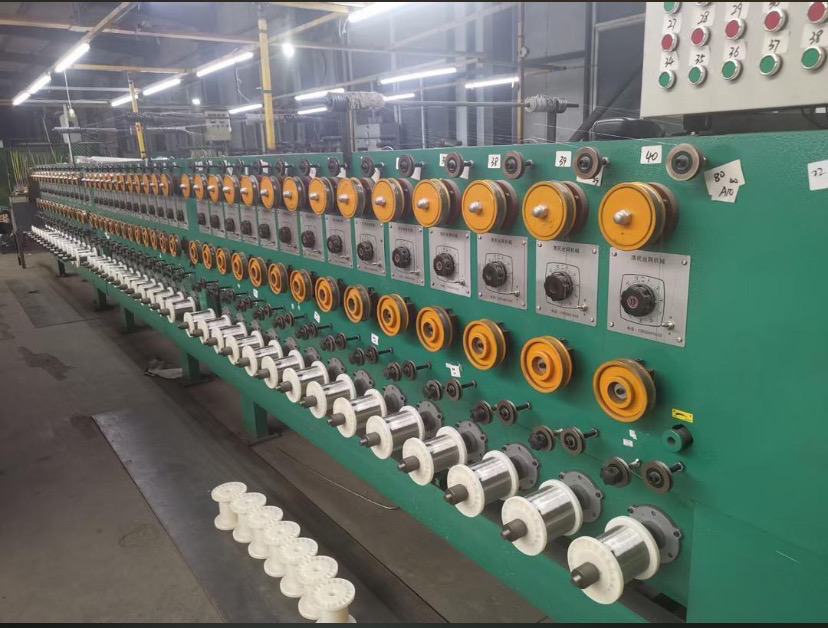

Drawing Process:

lIn the drawing process, stainless steel wire is formed by pulling or drawing a larger diameter wire through a series of progressively smaller dies or drawing plates.

lThe stainless steel wire is fed through the first die, which reduces its diameter slightly. It is then passed through subsequent dies, each of which further reduces the diameter until the desired wire diameter is achieved.

lThe drawing process also work-hardens the stainless steel wire, increasing its tensile strength and reducing its ductility.

lOnce the desired diameter is reached, the stainless steel wire may be annealed to relieve internal stresses and improve its formability and machinability.

lBoth extrusion and drawing processes offer precise control over the dimensions and properties of the stainless steel wire produced. Extrusion is often used to create stainless steel wire with complex cross-sectional shapes or profiles, while drawing is preferred for producing wire with uniform diameter and excellent surface finish.

Structural Design and Types of Stainless Steel Wire Mesh:

Stainless steel wire mesh is available in a wide range of structural designs, offering versatility and adaptability to various applications. Understanding the structural design and weave patterns of stainless steel wire mesh is essential for selecting the appropriate mesh for specific requirements. Below is an overview of key structural design elements and types of stainless steel wire mesh:

Mesh Size, Wire Diameter, and Aperture Size:

lMesh Size: Refers to the number of openings or meshes per linear inch in both directions of the wire mesh. Common mesh sizes range from fine meshes (e.g., 200 mesh or higher) to coarse meshes (e.g., 2 mesh).

lWire Diameter: Indicates the diameter of the wires used to create the mesh. Wire diameter can vary depending on the mesh size and application requirements. Thicker wires offer greater strength and durability, while thinner wires provide finer filtration.

lAperture Size: The size of the openings or spaces between adjacent wires in the mesh. Aperture size is determined by the combination of mesh size and wire diameter and influences the filtration or sieving capabilities of the wire mesh.

Classification Based on Weave Patterns:

lPlain Weave: The most common and straightforward weave pattern, where each weft wire passes alternately over and under each warp wire.

lTwill Weave: Characterized by a diagonal pattern created by passing weft wires over a greater number of warp wires. Twill weave offers higher strength and stability compared to plain weave.

lDutch Weave: Consists of thicker warp wires and finer weft wires, resulting in a tight mesh with larger aperture sizes. Dutch weave is commonly used for filtration applications.

Specialty Designs:

lReverse Dutch Weave: Similar to Dutch weave but with reversed wire diameters, resulting in a finer mesh with smaller aperture sizes on the surface. Reverse Dutch weave offers excellent filtration efficiency and particle retention.

lCrimped Weave: Features wires that are crimped or corrugated to create a textured surface. Crimped weave enhances the rigidity and stability of the wire mesh, making it suitable for heavy-duty applications.

lWelded Mesh: Constructed by welding intersecting wires together at their junctions. Welded mesh offers high strength and durability and is commonly used for fencing, security, and reinforcement applications.

Applications Across Industries:

Filtration and Separation:

lWater Treatment: Stainless steel wire mesh is used in filtration systems for water treatment plants to remove impurities and particles from water sources.

lOil and Gas: Wire mesh filters are employed in oil and gas exploration and refining processes to separate solids and contaminants from liquids and gases.

Industrial Processing:

lChemical Processing: Stainless steel wire mesh is utilized in chemical processing industries for sieving, filtering, and separating chemicals and compounds.

lPharmaceutical: Wire mesh screens are employed in pharmaceutical manufacturing for sieving and grading powdered medications and ingredients.

Food Processing and Packaging:

lFood Processing: Stainless steel wire mesh screens are used in food processing facilities for sieving and straining ingredients, separating solids from liquids, and sifting flour and other food products.

lPackaging: Wire mesh belts and screens are utilized in packaging machinery for conveying, sorting, and aligning food products during the packaging process.

Agriculture and Horticulture:

lCrop Protection: Stainless steel wire mesh is used in agricultural settings to create fencing, enclosures, and barriers for protecting crops from pests and animals.

lGreenhouses: Wire mesh screens are employed in greenhouse construction for ventilation, shading, and pest control.

Construction and Architecture:

lBuilding Facades: Stainless steel wire mesh is utilized in architectural applications for decorative facades, sun shading, and privacy screens in buildings and structures.

lSafety Barriers: Wire mesh panels are used as safety barriers and fencing on construction sites, bridges, and highways.

Automotive and Transportation:

lAutomotive Filters: Stainless steel wire mesh is employed in automotive filters for air, fuel, and oil filtration to remove contaminants and ensure engine performance.

lTransportation Security: Wire mesh screens are used in transportation infrastructure for safety barriers, security fencing, and partitioning in airports, train stations, and bus terminals.

Aerospace and Defense:

lAerospace Components: Stainless steel wire mesh is used in aerospace applications for filtration, fluid management, and structural reinforcement in aircraft components.

lDefense Equipment: Wire mesh screens are employed in defense equipment for ballistic protection, armor reinforcement, and filtration in military vehicles and structures.

Advantages and Benefits of Stainless Steel Wire Mesh:

Exceptional Durability and Longevity:

Stainless steel wire mesh is renowned for its remarkable durability and longevity, even when exposed to harsh environmental conditions and corrosive substances. It maintains its structural integrity and performance over extended periods, reducing the need for frequent replacements.

Corrosion Resistance:

One of the most significant advantages of stainless steel wire mesh is its excellent corrosion resistance. This property makes it highly suitable for outdoor applications, marine environments, and industrial settings where exposure to moisture, chemicals, and atmospheric elements is common. Stainless steel resists rust and degradation, ensuring long-term reliability and performance.

High Strength-to-Weight Ratio:

Despite its relatively lightweight nature, stainless steel wire mesh boasts a high strength-to-weight ratio. This characteristic provides structural stability and support in various applications without adding unnecessary bulk or weight. It allows for the creation of sturdy and reliable structures, components, and enclosures without sacrificing efficiency or functionality.

Versatility and Adaptability:

Stainless steel wire mesh offers unparalleled versatility and adaptability to a wide range of industrial, commercial, and residential needs. It comes in various mesh sizes, wire diameters, and weave patterns, allowing for customization to specific requirements. Whether used for filtration, sieving, screening, reinforcement, or decorative purposes, stainless steel wire mesh can be tailored to meet diverse applications.
