Stainless steel wire mesh manufacturing process

What is stainless steel wire mesh?

Stainless steel wire mesh is a versatile and durable material made from interlocking stainless steel wires woven together to form a grid-like structure. It is commonly used in various industrial, commercial, and residential applications for its strength, corrosion resistance, and other beneficial properties.

The manufacturing process of stainless steel wire mesh involves weaving stainless steel wires together using specialized machinery. There are different weaving patterns employed to create various types of wire mesh, each with its own set of characteristics and applications. Common weaving patterns include plain weave, twill weave, and Dutch weave.

Stainless steel wire mesh is available in a wide range of specifications, including wire diameter, mesh count (number of wires per inch), aperture size (opening size between wires), and material grade. These specifications can be tailored to meet specific requirements for filtration, separation, protection, and other functions.

All types of stainless steel raw material:

Stainless steel wire mesh can be manufactured from various types of stainless steel raw materials, each offering unique properties suited for different applications. Here are some common types of stainless steel used in wire mesh manufacturing, along with their pros and cons:

#1 Type 304 Stainless Steel:

Pros: Type 304 stainless steel is the most commonly used stainless steel grade due to its versatility, excellent corrosion resistance in a wide range of environments, and good strength and ductility. It is suitable for general-purpose applications and offers good formability.

Cons: While Type 304 stainless steel provides good corrosion resistance in many environments, it may not be suitable for highly corrosive or extreme conditions. It also has slightly lower corrosion resistance compared to some other stainless steel grades.

#2 Type 316 Stainless Steel:

Pros: Type 316 stainless steel is known for its superior corrosion resistance, particularly in acidic and chloride-rich environments. It offers excellent strength and durability, making it suitable for use in marine, chemical, and industrial applications where corrosion resistance is critical.

Cons: Type 316 stainless steel may be more expensive than other grades, and it can be slightly less formable than Type 304 stainless steel. Additionally, it may exhibit reduced magnetic properties compared to other stainless steel grades.

Type 316L Stainless Steel:

Pros: Type 316L stainless steel is a low-carbon version of Type 316, offering improved weldability and corrosion resistance, particularly in welded structures where sensitization to corrosion is a concern. It retains the high corrosion resistance of Type 316 while minimizing the risk of carbide precipitation.

Cons: Type 316L stainless steel may have slightly lower mechanical properties compared to Type 316 due to its reduced carbon content. It may also be more expensive than other stainless steel grades.

#3 Type 430 Stainless Steel:

Pros: Type 430 stainless steel is a ferritic stainless steel grade known for its good corrosion resistance in mild environments, high heat resistance, and ease of fabrication. It is often used in applications where high temperatures and oxidation resistance are required, such as automotive exhaust systems and appliances.

Cons: Type 430 stainless steel has lower corrosion resistance compared to austenitic stainless steel grades like Type 304 and Type 316, particularly in acidic and chloride-rich environments. It may also exhibit reduced ductility and toughness.

#4 Type 201 Stainless Steel:

Pros: Type 201 stainless steel is a low-cost alternative to Type 304 stainless steel, offering good formability, corrosion resistance in non-corrosive environments, and sufficient strength for many applications. It is commonly used in decorative applications, cookware, and utensils.

Cons: Type 201 stainless steel has lower corrosion resistance compared to Type 304 and Type 316 stainless steel grades, especially in corrosive environments. It may also have reduced resistance to pitting and crevice corrosion.

Stainless steel wire mesh offers several advantages:

Corrosion Resistance: Stainless steel is highly resistant to corrosion, making stainless steel wire mesh suitable for use in harsh and corrosive environments, including marine, chemical, and industrial settings.

Strength and Durability: Stainless steel wire mesh is strong, durable, and capable of withstanding high temperatures, mechanical stress, and exposure to the elements without losing its integrity.

Versatility: Stainless steel wire mesh is versatile and can be used in a wide range of applications, including filtration, sieving, screening, reinforcement, protection, and decorative purposes.

Easy Maintenance: Stainless steel wire mesh is easy to clean and maintain, requiring minimal upkeep to preserve its appearance and performance over time.

Hygienic: Stainless steel is non-porous and smooth, making stainless steel wire mesh resistant to bacterial growth and easy to sanitize, making it suitable for use in food processing, pharmaceutical, and medical applications.

Aesthetic Appeal: Stainless steel wire mesh has a modern and aesthetically pleasing appearance, making it suitable for architectural, interior design, and decorative applications.

Manufacturing stainless steel wire mesh involves several key steps:

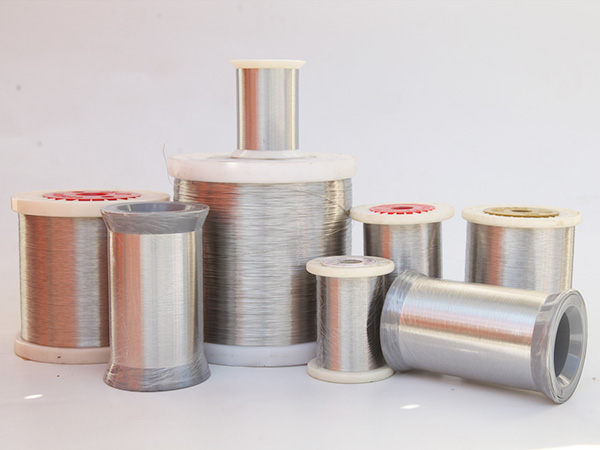

Material Selection: The process begins with selecting high-quality stainless steel wire. The choice of stainless steel grade depends on the intended application and the desired properties of the wire mesh, such as corrosion resistance, strength, and durability.

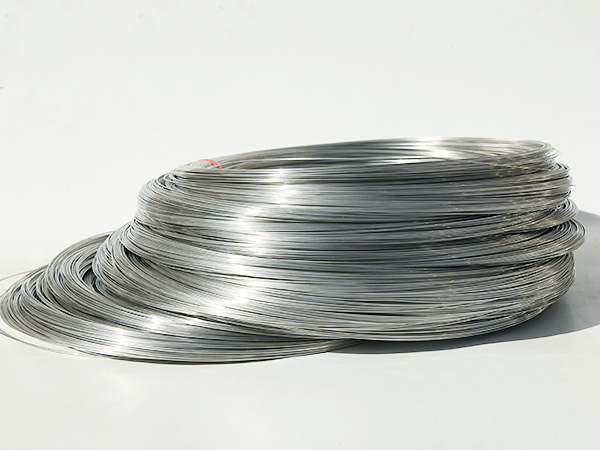

Wire Drawing: The selected stainless steel wire is drawn through a series of dies to reduce its diameter to the required size. This process also helps improve the wire's tensile strength and surface finish.

Annealing (Optional): In some cases, the drawn wire may undergo annealing, a heat treatment process that relieves internal stresses and improves the wire's ductility and workability.

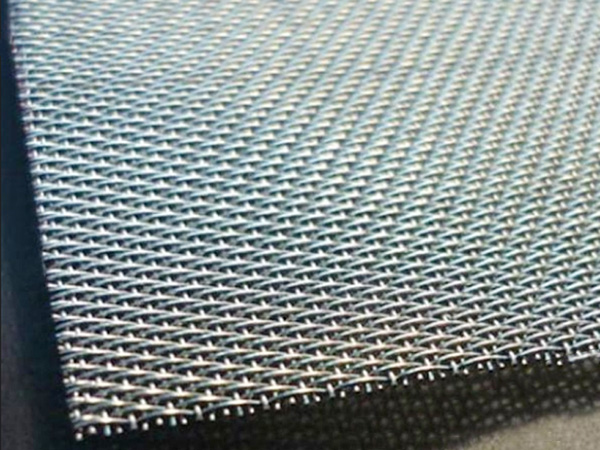

Weaving: The drawn wire is then fed into weaving machines, where it is interlaced to form the mesh pattern. There are various weaving techniques used to create different types of wire mesh, such as plain weave, twill weave, and Dutch weave. The choice of weaving pattern depends on factors such as the desired aperture size, wire diameter, and mechanical properties required for the application.

Mesh Inspection: After weaving, the stainless steel wire mesh undergoes rigorous inspection to ensure it meets quality standards. This may involve checking for defects, dimensional accuracy, and adherence to specifications.

Rolling and Cutting: Once the wire mesh passes inspection, it may be rolled onto spools or cut into sheets of specific dimensions, depending on customer requirements.

Surface Treatment (Optional): Depending on the application, the stainless steel wire mesh may undergo additional surface treatments such as pickling, passivation, or coating to enhance corrosion resistance, improve aesthetics, or provide other functional properties.

Summary:

Throughout the manufacturing process, quality control measures are implemented to ensure the wire mesh meets required standards for strength, durability, corrosion resistance, and other performance criteria. Advanced manufacturing technologies and equipment may be employed to enhance efficiency and precision in production.

Understanding the manufacturing process of stainless steel wire mesh highlights its reliability, versatility, and suitability for various applications across industries. From industrial filtration to architectural design, stainless steel wire mesh continues to play a vital role in countless applications due to its exceptional properties and quality manufacturing standards.
